Your files

Your files

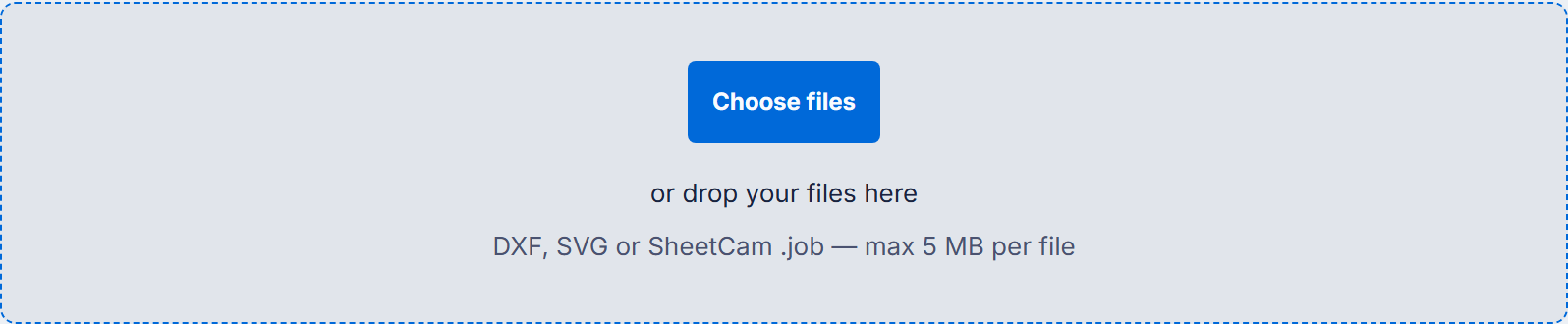

NestorCut reads your drawings as they come out of your CAD — it never asks you to export “into the right format”.

Format	This device	Our servers
DXF	read	read
SVG	read	read
DWG	refused	read
SheetCam job file (.job)	read	switches to device

Two simple rules:

• DWG requires “Our servers”: dropped on “This device”, it is refused with a message that says so — DWG conversion runs on our machines;
• the .job requires “This device”: dropped in server mode, the project switches to the device on its own, and you are told.

Every dropped drawing becomes a part card: its preview, its parts, its quantity (adjustable on the card), and its import findings when there are any — material loss, assumed unit, open paths. One click opens the card in full (enlarged preview, complete findings); scale and explode are actions ON the card.

The pages in this section:

• DXF — units, blocks, multi-part drawings;
• SVG — scaling and coordinate system;
• DWG — conversion on our servers;
• SheetCam job file (.job) — what is read, what is returned.
